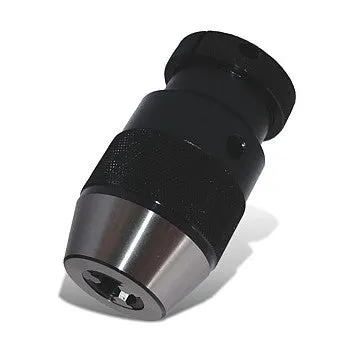

16mm Keyless Drill Chuck

16mm Capacity precision keyless chuck with lock. B16 taper arbor type. This chuck should fit most drill presses. A correct taper adapter may be required to fit the chuck to your machine application.

• B16 taper
• Opening capacity: 16mm
• All metal construction
• Keyless with lock

Installation Info: Clean both tapers of all grease and grit. With the chuck jaws completely retracted into the chuck and using a thin piece of wood to protect the chuck nose, tap the chuck into place on the spindle/taper adaptor.

To remove chuck from arbor: Insert wedges between the back of the chuck and the shoulder of the arbor as shown in the picture on the right. By tapping these wedges with a hammer or applying force in a bench vice, the wedges will force the chuck off the arbor shaft.
